Staggered Tile Pattern SVG is a public staggered pattern variation with 5 customized values saved for quick export and remixing.
Saved Design
Staggered Tile Pattern SVG
Staggered Pattern saved on March 19, 2026.
Staggered PatternLatticePublic DesignState ID Bej9Ls
Design Summary
5 custom values
Created
Mar 19, 2026
Use It
Edit or remix
Design Snapshot
Main values in plain language

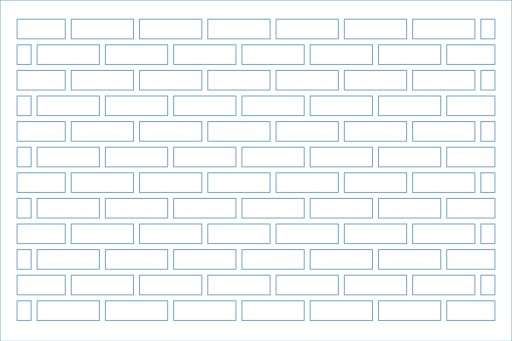

Staggered Pattern configured with width 300 mm, height 200 mm, plus additional tuned values.
Staggered PatternLatticeLaser CutSVGDXFPublic DesignCustom ValuesBrick HBrick WGroutMargin
Measurement Summary
300 mm
200 mm
Custom Values
Parameters changed from the generator defaults
These are the saved values that make this design different from the default Staggered Pattern setup.
Brick H
15
Brick W
40
Grout
3.5
Margin
10
Offset Y
-4.5
Recommended Uses
Projects this design suits well
These suggestions come from the base generator category and are useful starting points when deciding where to apply this saved variation.
Running bond wall panels
Decorative screens
Architectural cladding mockups
Laser cut brick textures
Export Guidance
When to use SVG vs DXF
Both exports are generated from the same saved values, so the best choice depends on what tool you plan to use next.
SVG
Best for vector editing and quick laser workflows
DXF
Best for CAD-oriented fabrication pipelines
PNG / PDF
Best for review, sharing, and client approval
